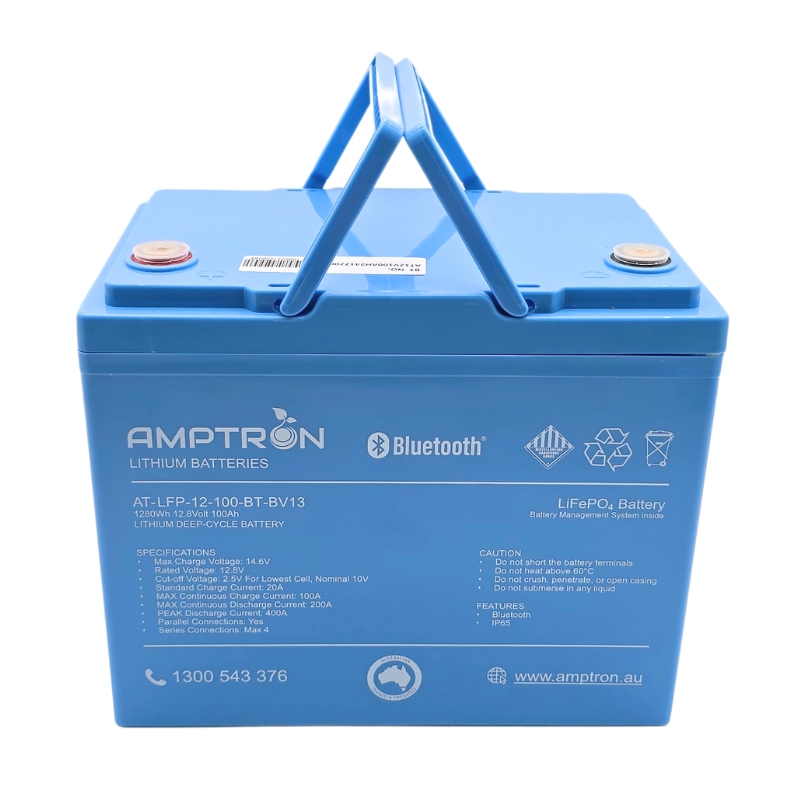

12V 100Ah/200A Continuous Discharge LiFePO4 Compact ABS Battery with Bluetooth

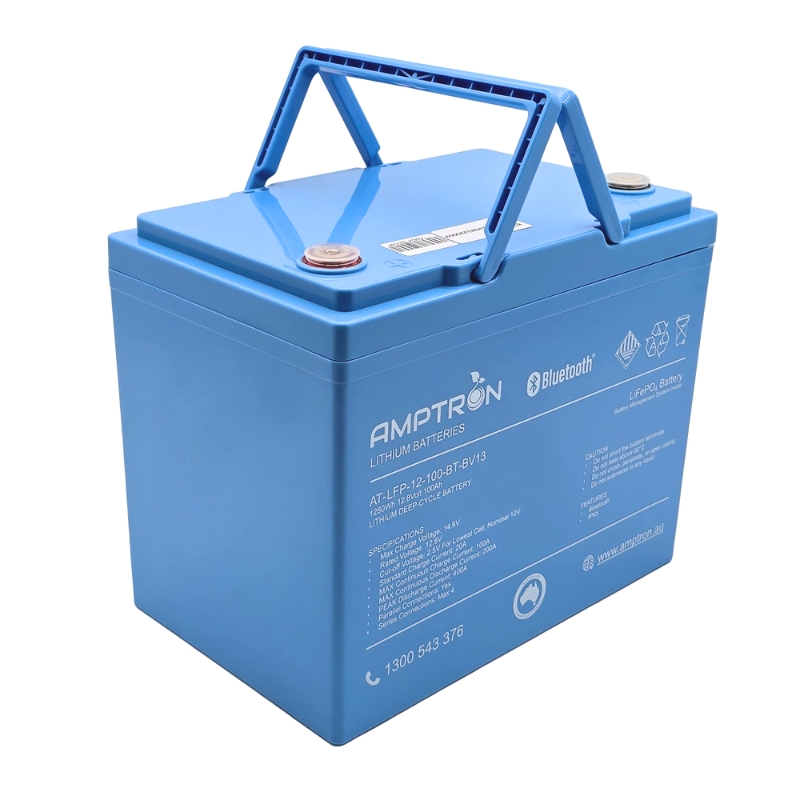

12V 100Ah/200A Continuous Discharge LiFePO4 Compact ABS Battery with Bluetooth - Image 2

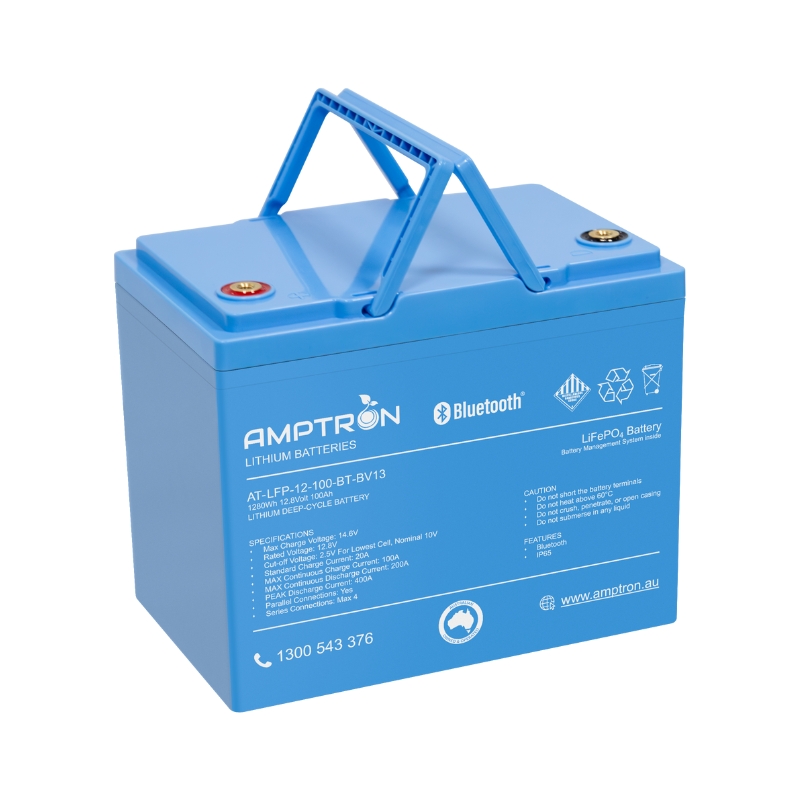

12V 100Ah/200A Continuous Discharge LiFePO4 Compact ABS Battery with Bluetooth - Image 3

12V 100Ah/200A Continuous Discharge LiFePO4 Compact ABS Battery with Bluetooth

$799.00

including GST

The Classic model 12V 100Ah Lithium LiFePO4 Battery comes in a very compact form factor and is an alternative replacement (AR) for most applications currently using a deep cycle Gel, AGM or Flooded Lead Acid battery. The maximum continuous discharge current is 200A and peak discharge current 400A for 3 seconds.

If you have any questions about stock quantities, please contact us before ordering.

Found this product cheaper elsewhere? We offer price matching. T&C’s apply.

Price match request

INFORMATION

These batteries are designed using only the highest quality components and are backed with our 4-year warranty. This includes the use of a robust Battery Management System (BMS), Aluminium encased prismatic cells, solid busbar connectors and internal protection to reduce movement and damaging vibrations. Our batteries can also be placed on their sides providing versatile installation options. The integrated Battery Management System is designed to monitor, protect, and optimise each cell within the battery. The BMS maximises the performance of the battery by automatically balancing the cells and protecting them from over charging, over discharging, over temperature, and excessive charge or discharge currents. Our integrated BMS allows our batteries to be used as an alternative replacement for most applications requiring deep cycle batteries, however if the charging system does not support a Lithium charge profile, there are some compromises – please contact Amptron for more information.

Features

HEAVY DUTY – BUILT IN BATTERY MANAGEMENT SYSTEM AMPTRON® Lithium batteries use a built-in Battery Management System (BMS) designed to automatically disconnect the charging or discharging circuits to prevent damage to the cells and internal electronics from abnormal operation and helps to ensure safe and accurate operation of the battery. THE BMS PROTECTION FEATURES INCLUDE:
  • Low Voltage Protection Switch – Automatically disconnects the discharge circuit to prevent damage to the cells if the battery drains below a pre-set voltage.
  • Over Voltage Protection Switch – Automatically disconnects the charging circuit to prevent damage to the cells if the battery is being charged above a pre-set maximum voltage.
  • Short Circuit and Over Current Protection Switch – Automatically disconnects the discharge circuit if the load draws currents above pre-set limits.
  • Reverse Polarity Protection Switch – Automatically disconnects the charge and discharge circuits if a reverse polarity condition is detected.
  • Thermal protection – Built-in thermal sensors will automatically disconnect the charge and discharge circuits when excessive temperatures are detected.
CELL BALANCING The BMS balances the cells through top-end balancing and will discharge cells that exceed 3.65V during charging. INTERNAL CELL SAFETY THERMAL FUSE: Our latest prismatic cell technology is manufactured with an internal thermal safety fuse between the anode and cathode that will break and disconnect in the unlikely event the cell would begin to overheat. SAFETY VENT: Each cell has a high-pressure safety vent that will flip open to release energy and prevent explosion. FLAME RETARDANT ELECTROLYTE: Our cells are manufactured with a flame retardant additive in our electrolyte.

Specifications

Detailed information and noted points:
Item
Specification
Description/Remark
Model
AT-LFP-12-100-BT-BV13
12V 100Ah / 200A Continuous Discharge Lithium LiFePO4 battery with Bluetooth Connectivity
Chemistry
Lithium Iron Phosphate (LiFePO4)
Battery dimensions
L-260mm x W-168mm x H-209mm
Weight
11kg
Cell type
3.2V 100Ah
Prismatic
Battery module
4 pcs 3.2V 102Ah cells, 4 serial
Casing material for single cell
Aluminium
Standard capacity（0.2C5A）
100 Ah / 1280Wh
Cycle life
​> 4000 cycles at 100% Depth of Discharge (DoD)
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
Rated voltage
12.8V
Working voltage per cell: 3.2V
Charge voltage
14.2 – 14.6V
Max. charge voltage per cell: 3.65V
Cut-off voltage
2.5V for lowest cell, nominal 10V
Cut-off is triggered when the first cell reaches 2.50V
Depth of discharge (DoD)
100%
Batteries can be discharged to 100% of the rated capacity
Standard charge current
20A
0.2C
Charging time
Approximately 5 hours
When charging from low voltage cut-off point
Optimum charge current range
20A (0.2C) to 50A (0.5C)
Cell max voltage < 3.65V
Rapid charging
Max. charge current 100A (1C3A)
Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells.
Max continuous discharge current
200A
1.75C, cell min voltage> 2.0v
Peak discharge current
400A
3.2C (3 seconds)
Discharge performance in normal temperature
20A (0.2C3A) ≥ 100% 1C3A ≥90％
Operating temperatures
Charge 0℃～55℃ (Ambient) Discharge -20℃～60℃ (Ambient) Storage -20℃～40℃
Impedance (Max, at 1000Hz.)
≤ 20mΩ
Storage performance
Capacity can be kept ≥ 80% in storage for 12months
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
Communication
Bluetooth
Connecting Terminals  Pos (+)  & Neg (-)
M8
IP Rating (Ingress Protection)
IP65
 Protected from total dust ingress & Protected from low pressure water jets from any direction
  Downloadable PDF Specifications
