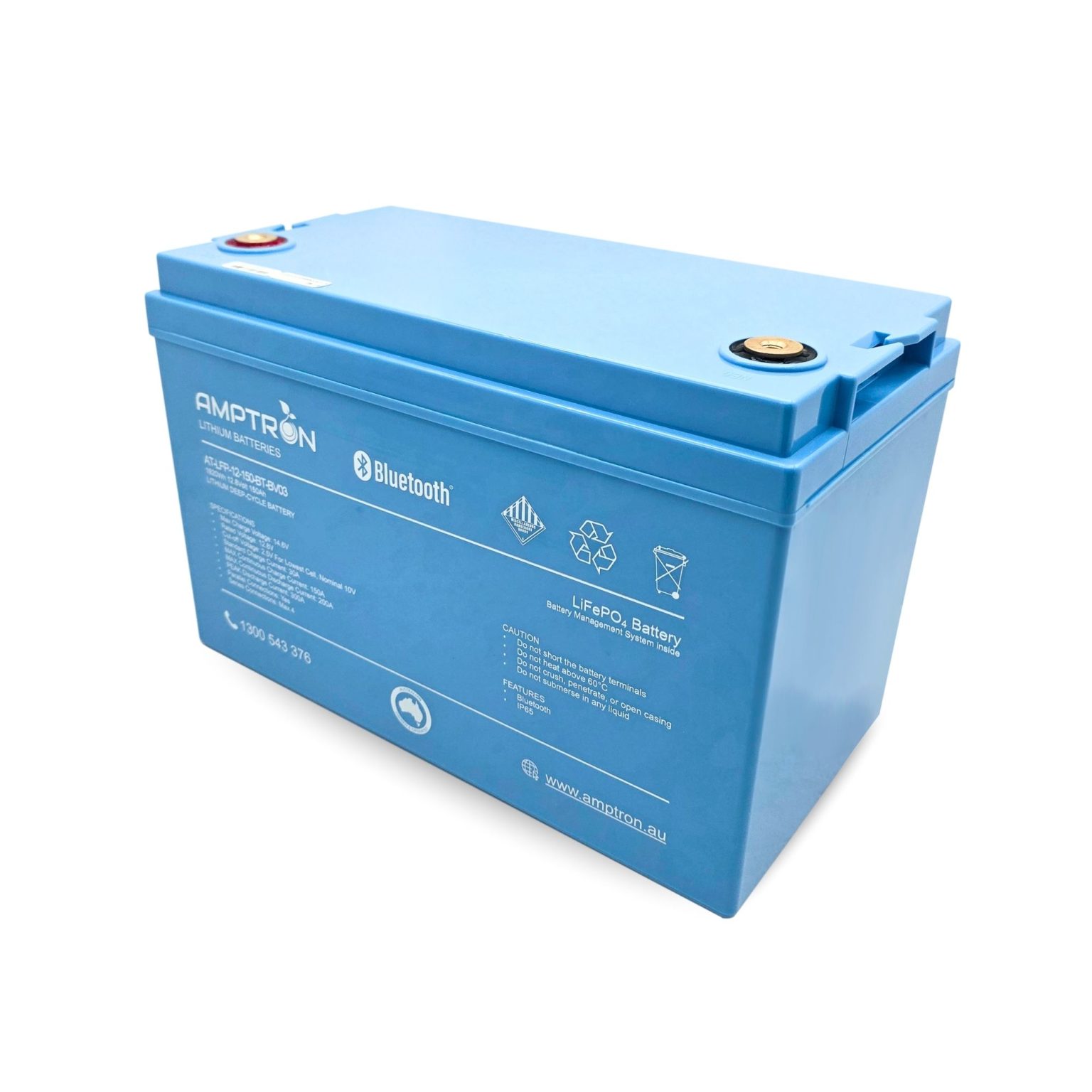

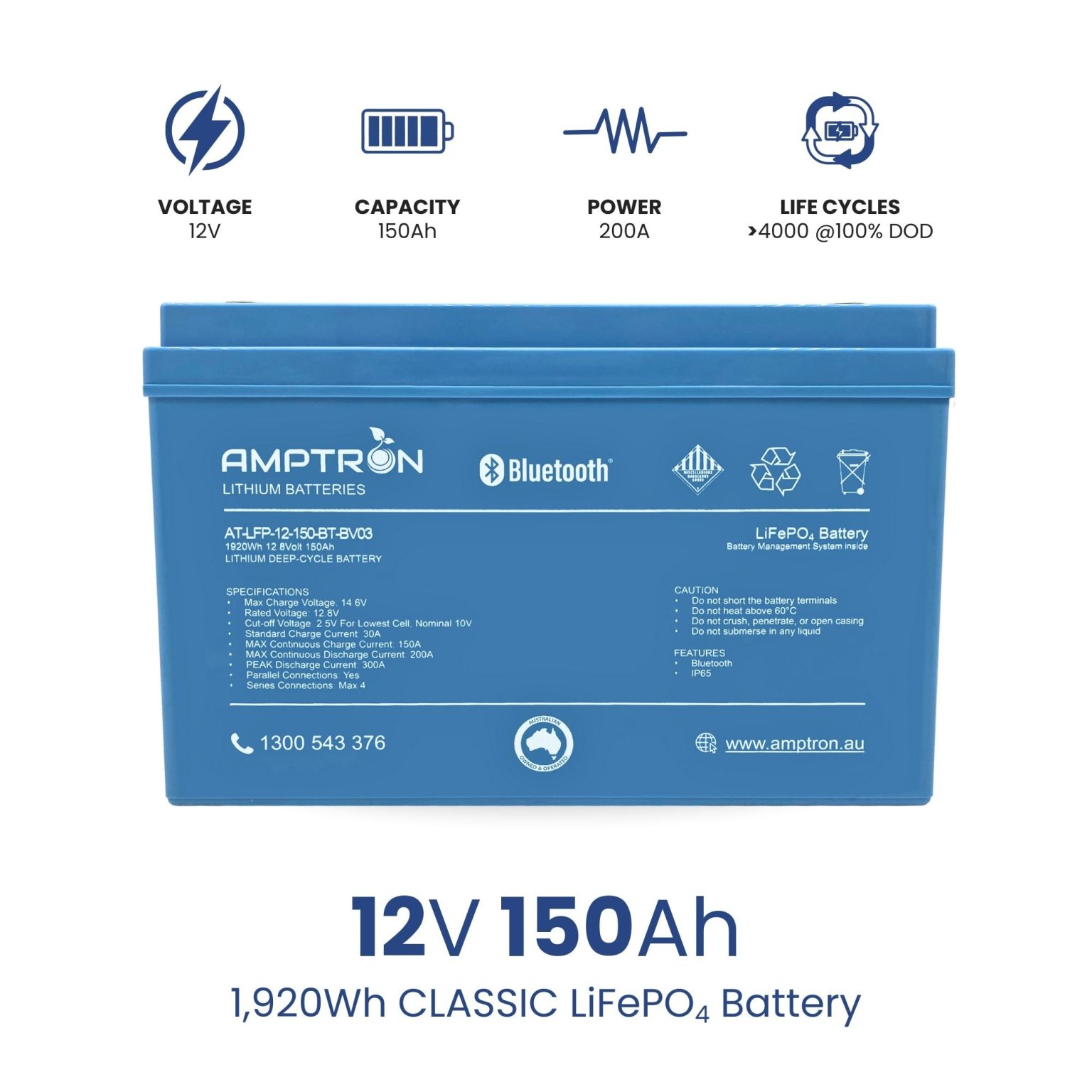

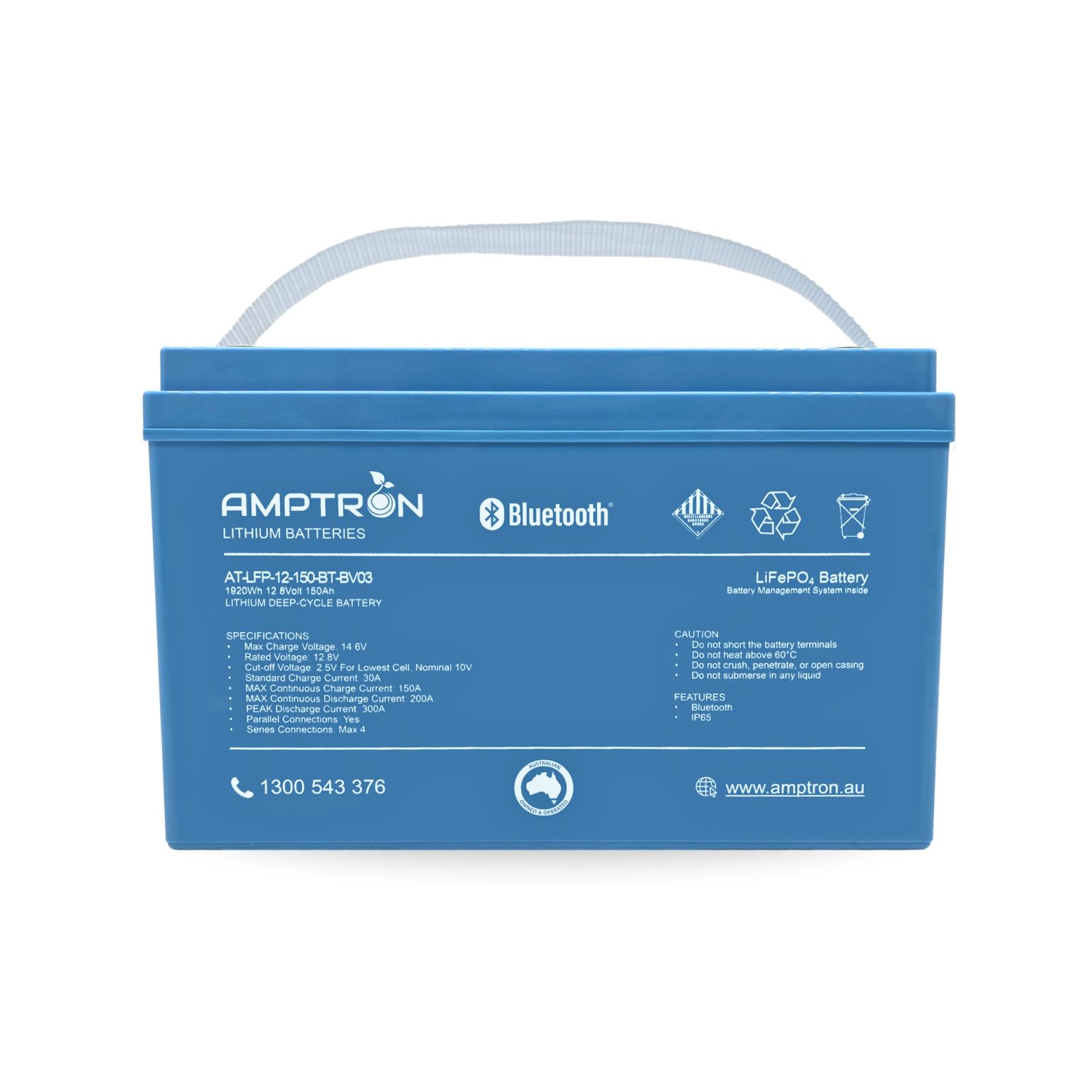

12V 150Ah 200A Lithium Deep Cycle Battery with Bluetooth
12V 150Ah 200A Lithium Deep Cycle Battery with Bluetooth - Image 2
12V 150Ah 200A Lithium Deep Cycle Battery with Bluetooth - Image 3
12V 150Ah 200A Lithium Deep Cycle Battery with Bluetooth - Image 4
12V 150Ah 200A Lithium Deep Cycle Battery with Bluetooth - Image 5

12V 150Ah 200A Lithium Deep Cycle Battery with Bluetooth

$1,190.00

including GST

If you have any questions about stock quantities, please contact us before ordering.

Found this product cheaper elsewhere? We offer price matching. T&C’s apply.

Price match request

INFORMATION

[custom_product_description]

We ship Australia wide direct to your door.

Order online today and we will dispatch your products within 1-2 business days.

We will send tracking to you.



Detailed information and noted points:

Item
Specification
Description/Remark
Model
AT-LFP-12-150-BT-BV03
12V 200Ah / 200A Continuous Discharge Lithium LiFePO4 battery with Bluetooth Connectivity
Chemistry
Lithium Iron Phosphate (LiFePO4)
Battery dimensions
L-330mm x W-172mm x H-216mm
Weight
16kg
Cell type
Prismatic cells
Battery module
8 pcs 3.2V 100Ah cells, 2 parallel strings of 4 cells in series
Casing material for single cell
Aluminium
Standard capacity（0.2C5A）
150Ah / 1920Wh
Battery packs in series
Supported (4)
Battery packs in parallel
Supported
Cycle life
>3000 cycles at 100% Depth of Discharge (DoD)
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
Rated voltage
12.8V
Working voltage per cell: 3.2V
Charge voltage
10.4 – 14.6V
Max. charge voltage per cell: 3.65V
Cut-off voltage
10V for lowest cell, nominal 10V
Cut-off is triggered when the first cell reaches 10V
Depth of discharge (DoD)
100%
Batteries can be discharged to 100% of the rated capacity
Standard charge current
30A
0.2C
Charging time
Approximately 4-5 hours
When charging from low voltage cut-off point
Internal resistance ≤20mQ
Maximum charge current 150A
Max continuous discharge current
200A
1C
Peak discharge current
300A
2C (5 seconds)
Operating Power Consumption ≤25mA
Operating temperatures
Charge 0℃～55℃ (Ambient)
Discharge -20℃～60℃ (Ambient)
Storage -20℃～60℃
Storage temperature range Within 2 months: -20℃～60℃, Within 6 months: -10℃～35℃
Recommended storage temperature
20℃ +- 5℃
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
Storage humidity range
10% – 90% RH
Recommended storage duration
Charge to 13.3V OR 40-60% SOC every 6 months
Connectivity
Bluetooth
​Connecting Terminals Pos (+)  & Neg (-)
M8
Cell over-charge protection
3.75V +- 0.05V
Cell over-discharge protection
2.5V +- 0.05V
Charging over current protection
155A +- 5A (10s)
Discharging over current protection
1st 205A +- 5A (10s), 2nd 320A +- 10A (3s +- 1s)
Short circuit protection
12400A +- 2000A (560 +- 340us)
SKU or Product Number AT-LFP-12-150-BT-BV03 Categories ,
