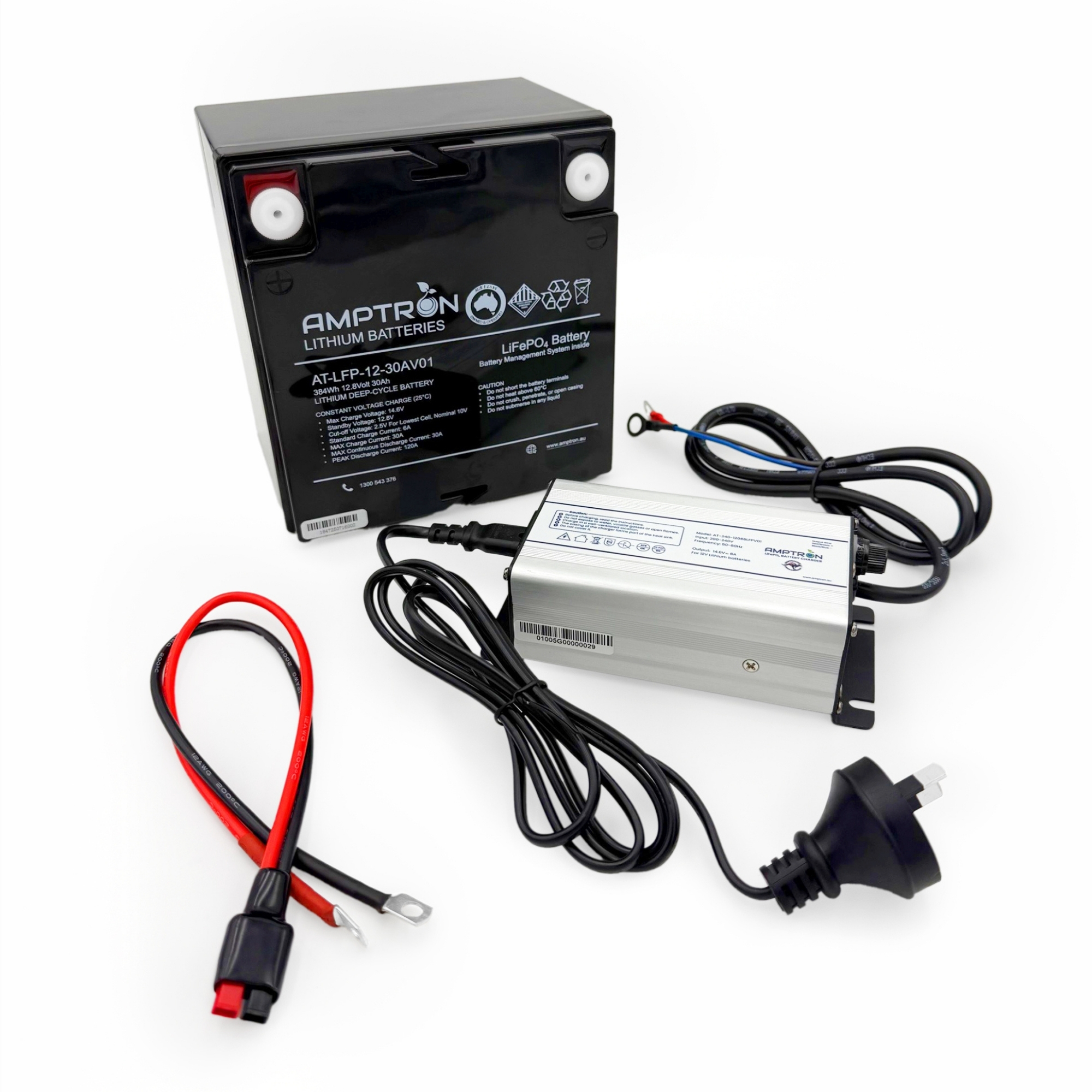

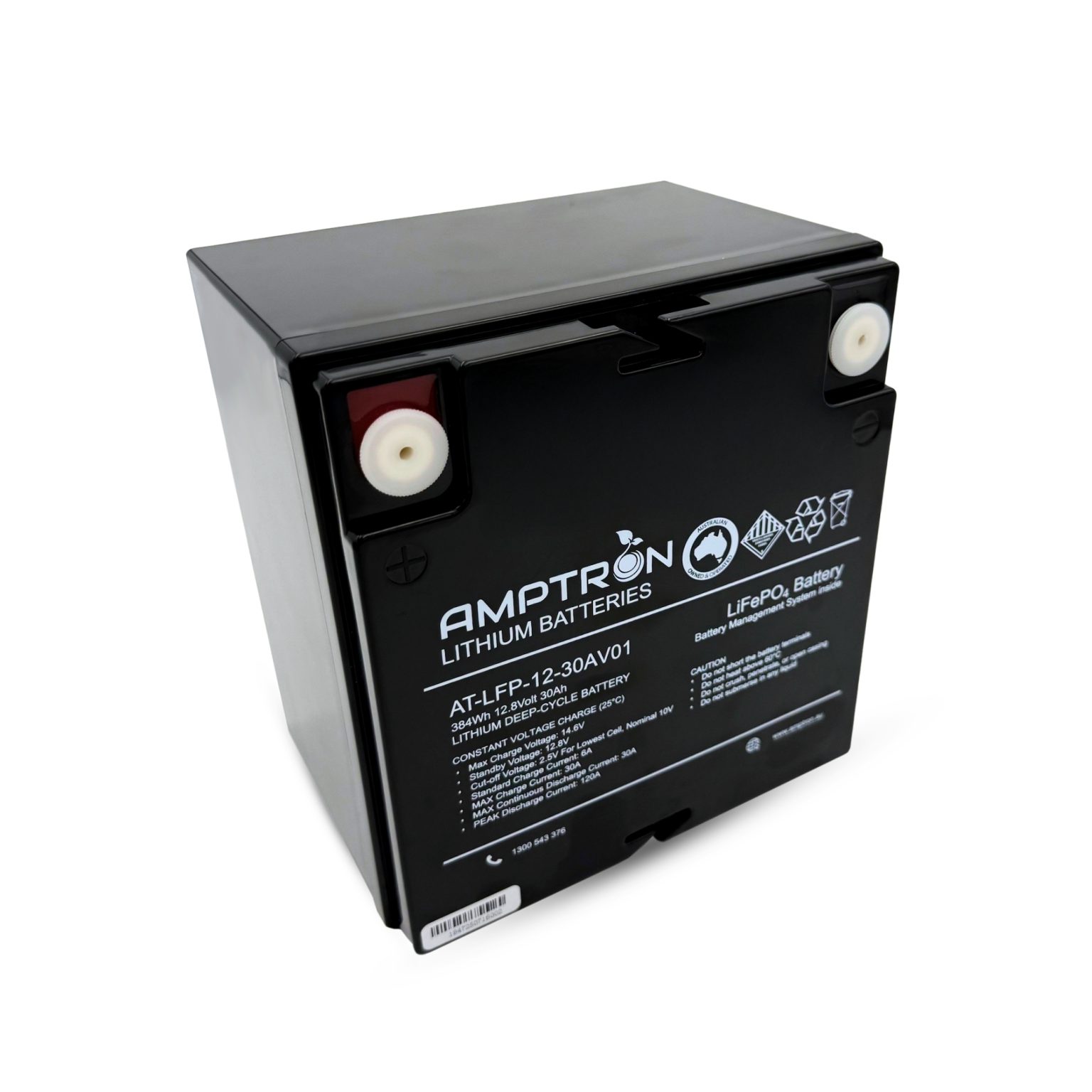

12V 30Ah LiFePO4 Battery & Charger Combo Kit for Golf Caddy – 384Wh
12V 30Ah LiFePO4 Battery & Charger Combo Kit for Golf Caddy – 384Wh - Image 2
12V 30Ah LiFePO4 Battery & Charger Combo Kit for Golf Caddy – 384Wh - Image 3
12V 30Ah LiFePO4 Battery & Charger Combo Kit for Golf Caddy – 384Wh - Image 4

12V 30Ah LiFePO4 Battery & Charger Combo Kit for Golf Caddy – 384Wh

$449.00

including GST

If you have any questions about stock quantities, please contact us before ordering.

Found this product cheaper elsewhere? We offer price matching. T&C’s apply.

Price match request

INFORMATION

[custom_product_description]

We ship Australia wide direct to your door.

Order online today and we will dispatch your products within 1-2 business days.

We will send tracking to you.



Item
Specification
Description / Remark
Model
AT-LFP-12-30-6-SET-EV01
12V 30Ah LiFePO4 battery & 6A charger set with mini Anderson connector
Chemistry
Lithium Iron Phosphate (LiFePO4)
Cell type
Prismatic

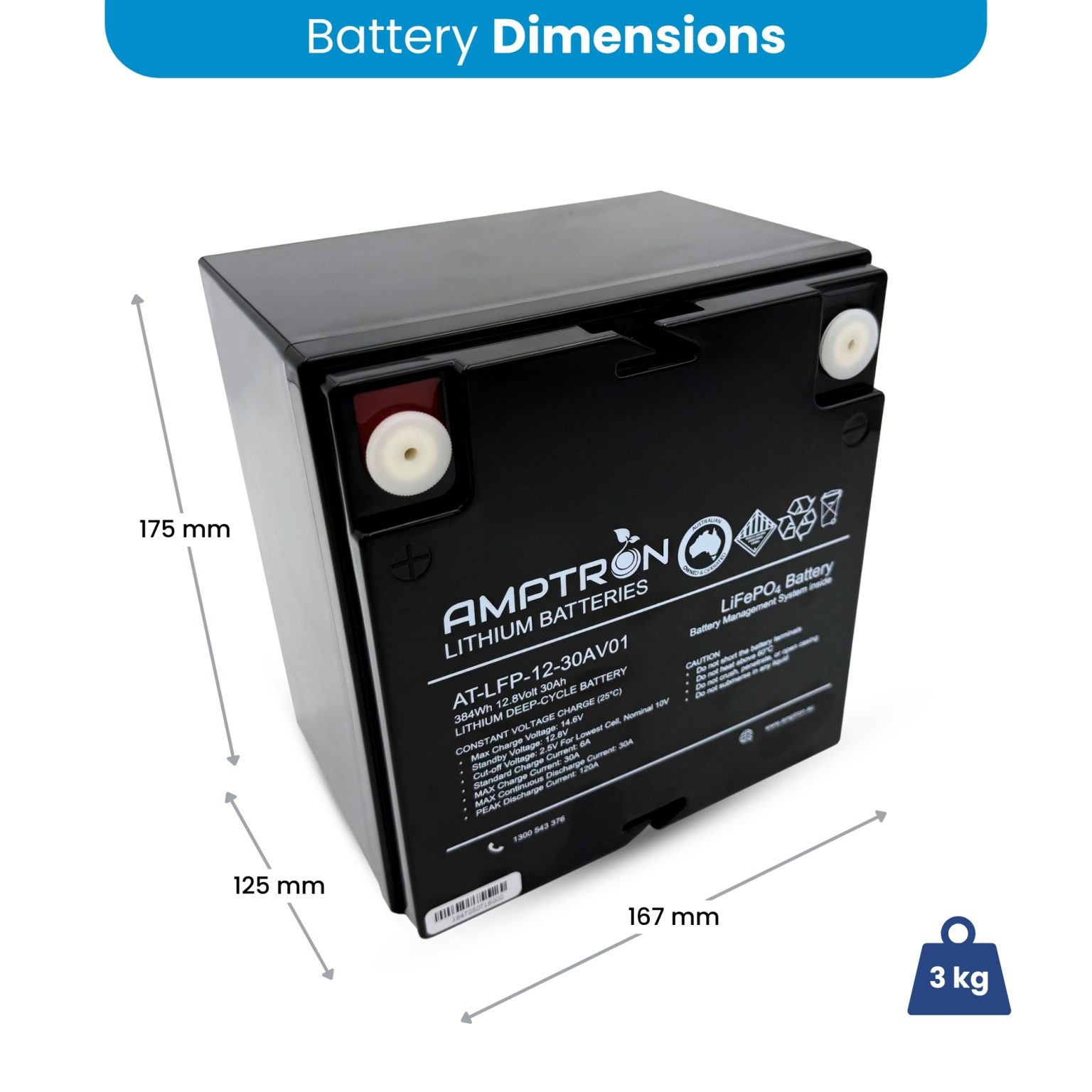

Battery dimensions
175mm (L) × 167mm (W) × 125mm (H)
Weight
3kg
Connection terminals
M6
Terminal torque rating
6Nm
Casing material
ABS
IP Rating
IP65
Protected from dust ingress and low-pressure water jets
Rated capacity
30Ah / 384Wh (at 0.2C)
Battery packs in series
Supported (4)
Battery packs in parallel
Supported
Battery cycle life
>2000 cycles
0.2C standard charge and discharge
Rated / nominal voltage
12.8V
Operating voltage range
10.0V – 14.6V
Shipping voltage
12V – 14V
Recommended charge voltage
14.2V – 14.4V
Cut-off voltage
8.8V
When lowest cell reaches 2.5V
Max Depth of Discharge (DoD)
100%
Recommended 80%
Standard charge current
10A
Recommended
Charging time
Approximately 3 hours
At recommended charge current
Maximum charge current
30A
Max continuous discharge current
30A
Peak discharge current
120A
10 seconds
Internal resistance
≤ 15mΩ
Operating power consumption
≤150uA
Operating temperature
Charge: 0°C – 55°C
Discharge: -20°C – 60°C
Ambient
Storage temperature range
Within 2 months: -20°C – 40°C
Within 6 months: -10°C – 35°C
Recommended storage temperature
20°C ±5°C
Storage humidity
10% – 90% RH
Recommended storage duration
Charge to 13.3V
or 40–60% SOC every 6 months
Cell over-charge protection
3.75V ±0.03V
Cell over-discharge protection
2.2V ±0.08V
Short circuit protection
1150A ±250A
500 ±300µs
SKU or Product Number AT-LFP-12-150-BT-BV03-2 Categories ,
