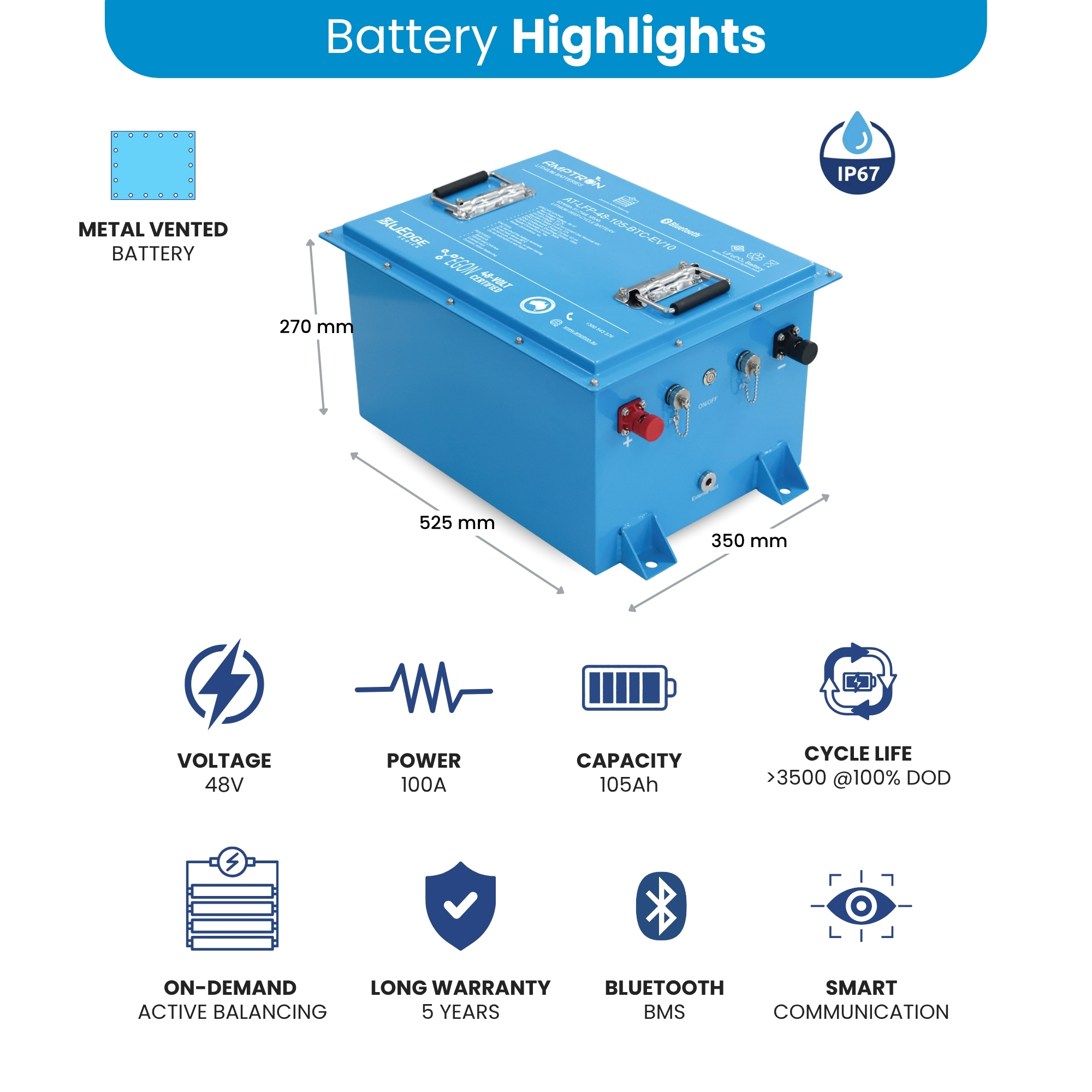

48V 105Ah 100A EGON BluEdge LiFePO4 Smart Metal Vented Battery
$2,990.00
including GST
AMPTRON® has built this 48V 105Ah Lithium model with EGON tailored for the installed 4×4/caravan/motorhome market. This battery delivers high-performance at 48V, extended cycle life, and intelligent battery management through CAN and RS485 communications. It also supports a Bluetooth connection making it versatile for a variety of different systems. This new model comes with Dynamic Active Balancing for pre-longing usable capacity. The battery is fitted with a John Guest 12mm venting fixture which makes compliance with AS/NZS 3001:2022 easier for installers.
- Watch Andrew’s YouTube Video: Here
- 105Ah Capacity (5,376Wh at 0.2C)
- 3500 Cycles at 100% depth of discharge (DOD)
- 100A Continuous Discharge Rating (200A peak)
- IP67 Water Resistance for Humid Environments
- Safe and reliable LiFePO4 Chemistry
If you have any questions about stock quantities, please contact us before ordering.
Found this product cheaper elsewhere? We offer price matching. T&C’s apply.
INFORMATION
Description
[custom_product_description]
Shipping & Delivery
We ship Australia wide direct to your door.
Order online today and we will dispatch your products within 1-2 business days.
We will send tracking to you.
Specifications
|
Item |
Specification |
Description/Remark |
| Model | AT-LFP-48-105-BTC-EV10 | 48V (51.2V) 105Ah / 100A LiFePO4 Metal Vented EGON Battery |
| Chemistry | Lithium Iron Phosphate (LiFePO4) | |
| Battery dimensions | 525mm L x 350mm W x 270mm H | |
| Weight | 46kg | |
| Rated capacity | 105Ah / 5376Wh | |
| Cell type | 3.2V 105Ah Prismatic | |
| Casing material for single cell | Aluminium | |
| Battery module | 16 pcs 3.2V 105Ah cells, 16 serial and 1 parallel (16S1P) | |
| Battery casing | Powder Coated Steel | |
| Cooling | Natural cooling | |
| Battery packs in series | Not supported | |
| Battery packs in parallel | Supported | |
| Communication | Bluetooth | Android and IOS App |
| CANbus | ||
| RS485 | ||
| Cycle life | 3500 cycles at 100% Depth of Discharge (DoD) | 0.2C standard charge and discharge @ DOD 80%, 25°C |
| Rated voltage | 51.2V | Working voltage per cell: 3.2V |
| Operating voltage range | 40V – 58.4V | |
| Max Charge voltage | 58.4V | Max. charge voltage per cell: 3.65V |
| Cut-off voltage | 40V | When the lowest cell reaches 2.5V |
| Depth of Discharge (DoD) | 100% | Batteries can be discharged to 100% of the rated capacity, Recommended 80% |
| Standard charge current | 20A (0.2C) | |
| Charging time | ~ 4-5 hours | |
| Maximum charge current | 52.5A | Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells. |
| Max continuous discharge current | 100A | |
| Peak discharge current | 200A | |
| Operating temperatures | Charge 0℃～55℃ (Ambient)
Discharge -20℃～60℃ (Ambient) |
|
| Storage Temperature | Within 2 months: -20℃ ~ 40℃ Within 6 months: -10 ~ 35℃ |
|
| Storage Humidity | 10% ~ 90% RH | |
| Storage duration | Charge 40% – 60% SOC every 6 months | Battery should be stored in a ventilated and dry environment. |
| Internal Resistance | ≤ 20mΩ | |
| Internal power consumption | ≤25mA |
View full specifications here: User Manual (PDF)
